WebView

<webview> embeds a web engine as a native subtree. The default is the platform’s own engine (WKWebView on macOS, WebKitGTK on GTK): pages render with the same engine the rest of the system uses, and nothing Chromium-shaped is bundled. Apps that need Chromium fidelity opt into CEF per platform instead; see Choosing the engine. Everything on this page applies to both engines unless a difference is called out.

import { render, sendCommand, useRef, useState } from "@nativedesktop/react";
import type { NdNodeRef } from "@nativedesktop/react";

function App() {
  const page = useRef<NdNodeRef<"webview">>(null);
  const [url, setUrl] = useState("https://example.com/");
  const [title, setTitle] = useState("Browser");

  return (
    <window title={title} defaultWidth={960} defaultHeight={640}>
      <box orientation="vertical" spacing={0}>
        <box orientation="horizontal" spacing={8} style={{ padding: 8 }}>
          <button
            label="←"
            cssClasses={["flat"]}
            onClick={() => { if (page.current) sendCommand(page.current, "goBack"); }}
          />
        </box>
        <separator />
        <webview
          ref={page}
          url={url}
          style={{ hexpand: true, vexpand: true }}
          onNavigate={(e) => setUrl(e.text)}
          onTitleChanged={(e) => setTitle(e.text || "Browser")}
        />
      </box>
    </window>
  );
}

await render(<App />);

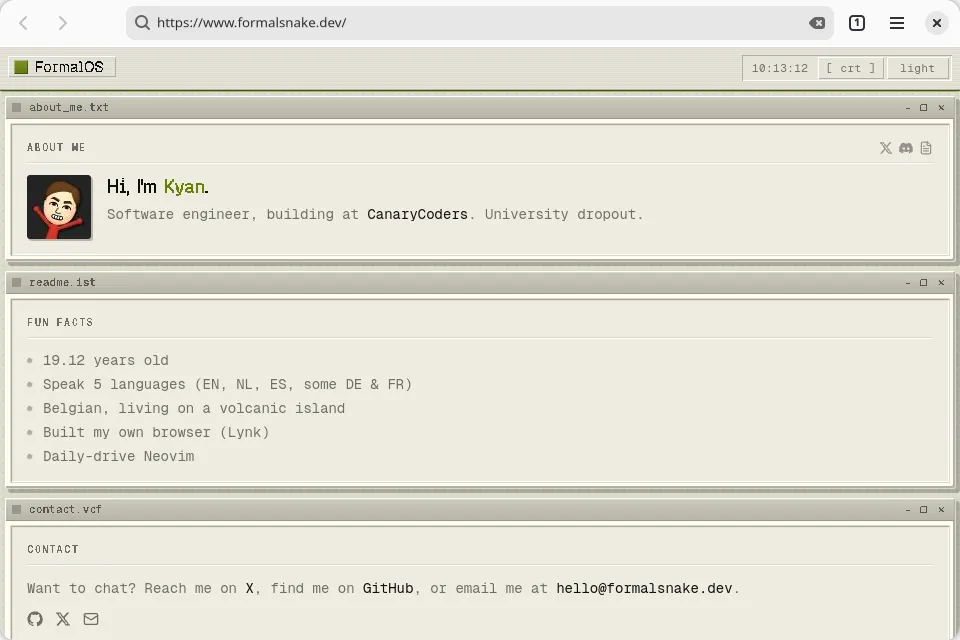

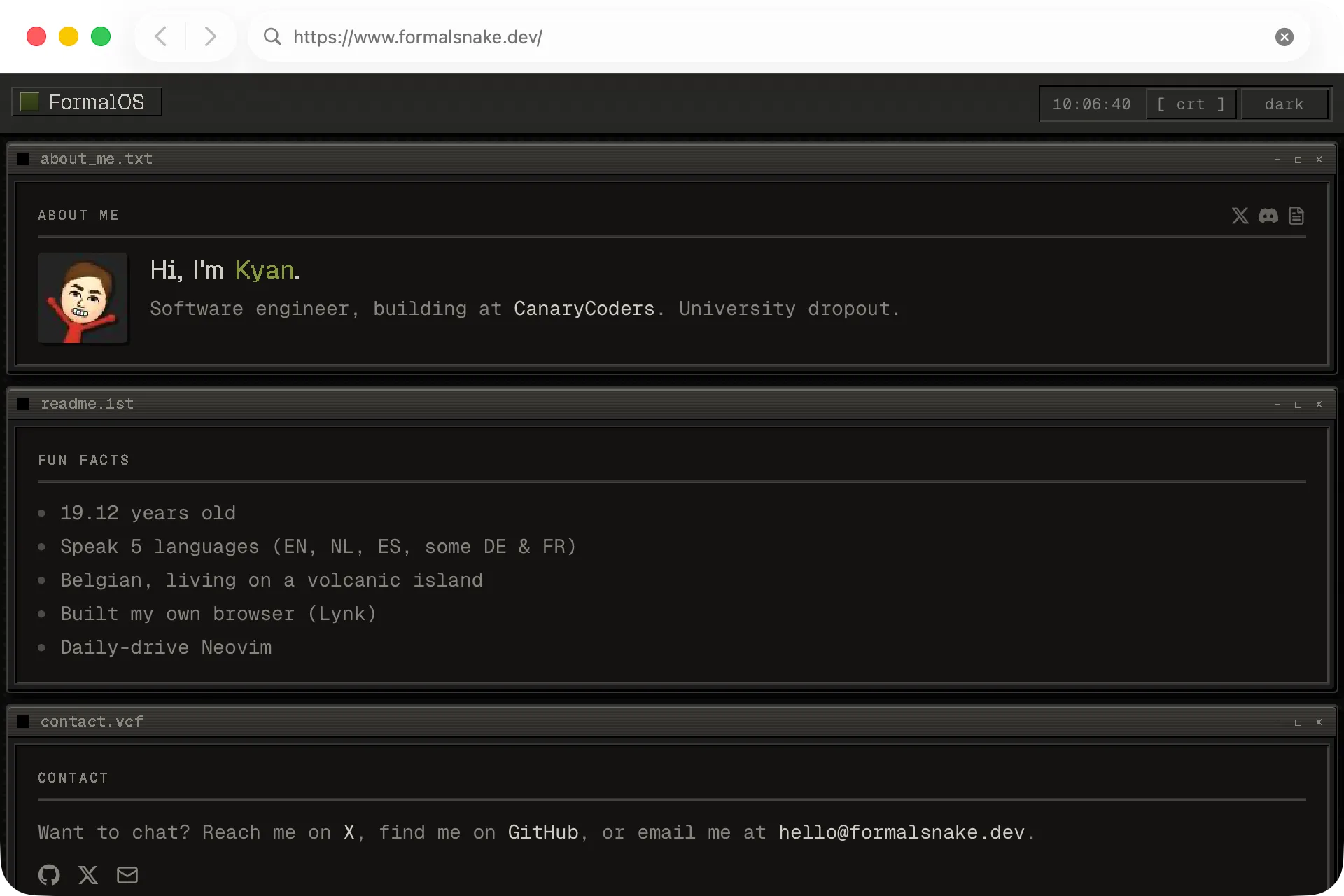

The full version of this example lives at examples/browser/main.tsx.

Props

Prop	Type	Default	Applied	Notes
url	string	""	createAndUpdate	The page to load. Setting it navigates; empty is ignored.
profile	string	""	create	Storage partition: "" shares the default one, a name starting with private is ephemeral, any other name is a persistent partition of its own.
engine	"system" | "chromium"	"system"	create	Which engine backs this view. Create-only: swapping engines under a live view would mean rebuilding it. Usually left to the per-platform config default (see below).
contextMenuMode	"native" | "suppress"	"native"	createAndUpdate	"native" shows the engine’s own context menu with the app’s setContextMenuItems merged into it; "suppress" shows no engine menu at all and leaves the whole menu to the app, off the contextMenu event.
testID	string	none	meta	Automation handle, not rendered.

url is controlled: the widget navigates whenever it changes. The host holds an echo guard and reloads only when the new url differs from the engine’s current URI, so feeding onNavigate back into your url state does not re-trigger a load. The widget fills whatever space its parent gives it, since a zero-size web view would collapse inside a <box>.

Events

Twenty-one events report navigation, page state and browser chrome. Their payloads mostly follow the schema’s shared shapes: text events carry { text }, boolean events carry { checked }, and loadProgress carries a bare { value }; loadFailed, downloadRequested, and javaScriptResult carry a widget-specific object nested under data instead.

Event	Handler prop	Payload	Fires when…
navigate	onNavigate	{ text } (URL)	The page URL changes (links, redirects, history).
titleChanged	onTitleChanged	{ text }	The document title changes.
loadingChanged	onLoadingChanged	{ checked }	A load starts or finishes.
backAvailable	onBackAvailable	{ checked }	Back-history availability changes.
forwardAvailable	onForwardAvailable	{ checked }	Forward-history availability changes.
loadProgress	onLoadProgress	{ value }, 0..1	Load progress changes (polled, rounded to 3 places).
loadFailed	onLoadFailed	{ data: { url, error } }	A navigation fails to load.
newWindow	onNewWindow	{ text } (URL)	target="_blank"/window.open() requests a popup.
downloadRequested	onDownloadRequested	{ data: { url, suggestedFilename? } }	The engine hits a response it can’t render itself (a download).
javaScriptResult	onJavaScriptResult	{ data: { id, ok, value?, error? } }	An executeJavaScript command completes.
scriptMessage	onScriptMessage	{ data: { name, world, body } }	Page JS called window.webkit.messageHandlers.<name>.postMessage(…).
schemeRequest	onSchemeRequest	{ data: { id, url, scheme } }	The engine needs the app to serve a custom-scheme URL.
cookiesResult	onCookiesResult	{ data: { id, ok, cookies?, error? } }	A getCookies command completes.
cookiesChanged	onCookiesChanged	{ data: {} }	The profile’s cookie jar changed (a ping, no payload).
faviconChanged	onFaviconChanged	{ data: { dataUrl? } } / { data: { pageUrl, iconUrl } }	The page’s icon resolved.
findResult	onFindResult	{ data: { matchFound, matchCount?, done } }	A find operation finished, or a match count arrived.
securityChanged	onSecurityChanged	{ data: { secure, insecureContent, url?, error? } }	The page’s transport security state changed.
linkHover	onLinkHover	{ text } (URL, "" on clear)	The pointer entered or left a link.
contextMenu	onContextMenu	{ data: { x, y, link?, image?, selection?, hasSelection, editable } }	The user asked for a context menu. Fires in both modes.
contextMenuItemClicked	onContextMenuItemClicked	{ data: { id, pageUrl, linkUrl?, imageUrl?, selectionText?, editable, checked?, wasChecked? } }	One of the app’s own context-menu items was chosen.
sessionSaved	onSessionSaved	{ data: { id, state } }	A saveSession command completes.
audioStateChanged	onAudioStateChanged	{ data: { playing, muted } }	The page started/stopped playing audio, or was muted.

On macOS, navigate, titleChanged, loadingChanged, backAvailable, forwardAvailable, and loadProgress are derived by polling the view’s navigation properties on a 10 Hz timer and emitting on change. Polling also catches single-page apps that change the URL via pushState without a WKNavigationDelegate callback. On GTK those are wired to the corresponding WebKit signals (load-changed, notify::uri, notify::title, notify::estimated-load-progress). loadFailed, newWindow, downloadRequested, and javaScriptResult are delegate-driven on both backends, since polling cannot observe them.

target="_blank" and window.open() never create a native popup. The host denies the popup and emits newWindow with the requested URL, leaving the app to decide what to do with it, usually opening a native tab. examples/browser/main.tsx is the worked pattern.

downloadRequested fires when the engine hits a response it cannot render. The in-engine download is always cancelled and the app fetches the URL itself through Bun. GTK omits suggestedFilename, which only WebKit’s macOS delegate provides.

loadFailed filters two classes of routine navigation noise instead of firing on every cancelled load: a newer navigation superseding an in-flight one, and the tail of a navigation the engine cancelled itself, such as a response that turned into a downloadRequested.

Commands

Set the url prop to load a page. History, load control, and page-level actions are one-shot imperative commands. Take a ref on the <webview> and call sendCommand:

const page = useRef<NdNodeRef<"webview">>(null);
// …
sendCommand(page.current, "goBack");
sendCommand(page.current, "reload");
sendCommand(page.current, "setZoom", 1.5);

Command	Argument	Effect
goBack	none	Go back one entry (no-op when back history is empty).
goForward	none	Go forward one entry (no-op when forward history is empty).
reload	none	Reload the current page.
stop	none	Stop the in-flight load.
setZoom	number (1.0 = 100%)	Sets the page zoom factor.
setUserAgent	string	Overrides the UA string; "" restores the engine’s default.
openDevTools	none	Opens the WebKit inspector (GTK); see the macOS note below.
executeJavaScript	{ id, code, world? }	Runs code in the page (or in the named isolated world) and replies with a javaScriptResult event carrying the same id.
addUserScript	{ id, source, injectionTime?, world?, allowList?, blockList?, allFrames? }	Injects source into every page load. injectionTime is "start" or "end" (default). Re-using an id replaces the script.
removeUserScript	{ id }	Removes the script registered under id.
clearUserScripts	{ world? } or none	Removes every user script, or only those in one world.
registerScriptMessage	{ name, world? }	Makes window.webkit.messageHandlers.<name> available to page JS.
unregisterScriptMessage	{ name, world? }	Removes that handler.
respondScheme	{ id, base64, mime, status? } or { id, error }	Answers a pending schemeRequest.
getCookies	{ id, url? }	Reads the profile’s cookies, replying with cookiesResult.
setCookie	a cookie object	Writes a cookie: { name, value, domain, path?, secure?, httpOnly?, expires?, sameSite? }.
deleteCookie	{ name, domain?, path? }	Deletes every matching cookie.
findStart	{ text, caseSensitive?, wrap? }	Starts a find, replying with findResult.
findNext / findPrevious	none	Moves to the next/previous match.
findStop	none	Ends the find and clears the highlight.
saveSession	{ id }	Captures navigation history, replying with sessionSaved.
restoreSession	{ state }	Restores a previously saved history blob.
setMuted	bool	Mutes or unmutes the page’s audio.
setContextMenuItems	{ items: ContextMenuItem[] }	Replaces the items merged into the engine’s context menu (see below).

executeJavaScript has no synchronous return path. Use the executeJavaScript(node, code) helper from @nativedesktop/react rather than the raw command: it generates the id, sends the command, and returns a Promise<string> that settles from the matching javaScriptResult event. Wire the widget’s onJavaScriptResult prop straight to the paired onJavaScriptResult export so the promise has something to settle it:

import { executeJavaScript, onJavaScriptResult } from "@nativedesktop/react";

<webview ref={page} url={url} onJavaScriptResult={onJavaScriptResult} />;
// …later:
const title = await executeJavaScript(page.current!, "document.title");
const hidden = await executeJavaScript(page.current!, "window.secret", "my-extension");

getCookies and saveSession follow the same pattern with the onCookiesResult and onSessionSaved exports.

Context menus

With the default contextMenuMode="native" the engine’s own menu opens (Back/Forward/Reload, Open Link, Copy Image, spell-check and the system text services on macOS, Inspect Element wherever developer extras are on) and the app’s items are appended to it after a separator. Declare them per view with the setContextMenuItems helper; the host stores the tree until it is replaced.

import { setContextMenuItems } from "@nativedesktop/react";

setContextMenuItems(page.current!, [
  { id: "open-link", label: "Open Link in New Tab", contexts: ["link"] },
  { id: "save-image", label: "Save Image", contexts: ["image"] },
  { type: "separator" },
  {
    id: "tools",
    label: "Tools",
    contexts: ["all"],
    children: [
      { id: "tools-a", label: "Alpha" },
      { id: "tools-dark", label: "Dark Mode", type: "checkbox", checked: true },
    ],
  },
]);

<webview ref={page} url={url} onContextMenuItemClicked={(e) => run(e.data as ContextMenuItemClick)} />;

Field	Type	Meaning
id	string	Echoed back on contextMenuItemClicked. Omit for a separator.
label	string	The item’s text. Omit for a separator.
type	"normal" | "checkbox" | "radio" | "separator"	Defaults to "normal".
checked	bool	Drawn state for checkbox and radio.
enabled	bool	false renders the item insensitive.
contexts	("page" | "link" | "image" | "selection" | "editable" | "all")[]	Where the item appears. Defaults to ["page"].
targetUrlGlobs	string[]	*-wildcard globs matched against the link or image URL under the pointer.
children	ContextMenuItem[]	A submenu.

Which items a click earns is decided per invocation against that click’s hit test. page means the click landed on nothing more specific: a link, image, selection or editable field wins over it, the way a browser’s own menu behaves. A submenu whose every child was filtered out is dropped rather than shown empty, a separator is only drawn when something survived on both sides of it, and contiguous radio siblings form one group.

checked and wasChecked on the event report the state a click implies. The framework never mutates its copy of the tree: the app owns the model and answers with the next setContextMenuItems.

openDevTools opens the real WebKit inspector on GTK (webkit_web_inspector_show). WKWebView has no programmatic “open the inspector” API on macOS: the command instead makes the view inspectable (isInspectable = true, macOS 13.3+) and logs a reminder to attach through Safari’s Develop menu.

Command names are checked against the schema at compile time (through WidgetCommandNames) and again at runtime, so a stale string fails loudly. See Imperative Commands & Refs. There is no loadURL command; set the url prop.

User scripts and isolated worlds

addUserScript injects JavaScript into every page the view loads, before or after the document parses. A world name puts the script in an isolated JavaScript world: it shares the DOM with the page but not its globals, so an extension-style script cannot be seen or tampered with by the page, and two extensions cannot see each other. executeJavaScript takes the same world name, so the host can read back what an injected script stored.

sendCommand(page.current!, "addUserScript", {
  id: "dark-reader",
  source: "window.__theme = 'dark'",
  injectionTime: "start",
  world: "dark-reader",
  allowList: ["https://*.wikipedia.org/*"],
});

allowList/blockList are URL match patterns. WebKitGTK applies them natively; WKWebView has no such API, so the framework compiles the patterns into a guard around the script source — the same observable behaviour, expressed where WebKit allows it.

Scripts are a keyed registry: re-adding an id replaces it, removeUserScript drops one, clearUserScripts drops all of them (or all in one world). On GTK a script is removed by identity; WKUserContentController can only clear everything, so the AppKit side replays the surviving set.

Talking to the page

registerScriptMessage creates a named channel, after which page JS can post to it and the app receives scriptMessage with the decoded value:

sendCommand(page.current!, "registerScriptMessage", { name: "bridge", world: "dark-reader" });
// page side (in that world): window.webkit.messageHandlers.bridge.postMessage({ ok: true })
<webview onScriptMessage={(e) => console.log(e.data)} />

body is the posted value itself, already decoded — an object arrives as an object, not a string.

A channel name is per view, not per world. WebKitGTK routes script-message-received by the name and refuses a name already registered on that view whatever world is asked for; WKUserContentController keys on name and world but still exposes one window.webkit.messageHandlers.<name> to the page. Two isolated worlds in one view therefore need two names (bridge_a, bridge_b), and the app should read the sender off name rather than off the reported world, because the name is what both engines route on. A repeat registration of the same name and world is a no-op; a second world asking for a taken name is refused with an ND_WARN rather than silently mis-delivering.

Custom URI schemes

Register a scheme with webviewEngine.registerScheme and the app serves it. Both engines bind scheme handlers to a configuration that is frozen once a web view exists, so this must run before the first <webview> mounts; calling it later rejects with a clear error rather than silently doing nothing.

On the chromium engine the scheme must also appear in webview.cef.schemes in nativedesktop.config.ts. CEF makes a scheme standard, secure and CORS-enabled only when every process learns it before cef_initialize, which runs long before app code, so the list has to come from config; registerScheme then installs the handler behind it. The call itself is identical on both engines.

import { webviewEngine } from "@nativedesktop/react";

await webviewEngine.registerScheme("crx");
// then, on the webview that made the request:
<webview
  onSchemeRequest={(e) => {
    const { id, url } = e.data as { id: string; url: string };
    sendCommand(page.current!, "respondScheme", {
      id,
      base64: Buffer.from(bytesFor(url)).toString("base64"),
      mime: "text/html",
      status: 200,
    });
  }}
/>;

Answer with { id, error } instead to fail the request. An id that never gets answered leaves the page hanging on that resource, so always answer.

Cookies and profiles

getCookies, setCookie and deleteCookie operate on the view’s own storage partition, and cookiesChanged fires when the jar changes. Deletion matches by name plus the domain and path you supply; both backends look the live cookie up first, because both engines delete by identity.

profile picks that partition at create time. Two views with the same profile name share cookies, cache and local storage; private… gets an ephemeral partition that leaves nothing on disk. On GTK this is a WebKitNetworkSession, on macOS a WKWebsiteDataStore (named stores need macOS 14+).

Choosing the engine

<webview> runs on one of two engines, chosen per platform in nativedesktop.config.ts. The default is "system" (WKWebView on macOS, WebKitGTK on GTK) and ships zero Chromium bytes. "chromium" embeds Chromium via CEF for apps that need Chromium fidelity, and the two mix freely across platforms:

nativedesktop.config.ts

import { defineConfig } from "@nativedesktop/cli/config";

export default defineConfig({
  webview: {
    engine: { mac: "system", linux: "chromium" },
    cef: { version: "151.3.23", locales: ["en-US"], schemes: ["myapp"] },
  },
});

nd dev resolves the current platform’s entry and hands it to the host as ND_WEBVIEW_ENGINE, which doubles as the dev override: ND_WEBVIEW_ENGINE=chromium nd dev wins over the config without editing it. A packaged app carries the resolved engine itself. Per view, the create-only engine prop takes the same two values, so one app can hold views on both engines at once; views without the prop follow the config.

The app-facing contract does not move with the engine: the props, events, commands, cookies, schemes and bridge on this page behave the same on both. CEF is never linked into the host binary; it loads at runtime from the app bundle, and packaging stages the CEF distribution (fetched at package time, never committed) only when a platform declares "chromium". nd doctor reports the resolved engine, fails when a chromium config has no CEF dist to resolve, and flags a "system" build that contains Chromium bytes.

Two differences to plan around:

• Custom schemes are declared in config on CEF. webviewEngine.registerScheme is the same call on both engines, but CEF also needs the scheme named in webview.cef.schemes (see Custom URI schemes).
• chrome-extension:// belongs to Chromium. On CEF, Chromium blocks embedder navigation to chrome-extension:// URLs outright, before any scheme handler is consulted. An app that serves Chrome-style extension pages keeps chrome-extension:// on the system engine and serves the same ids and paths from a scheme of its own on CEF (declared in cef.schemes), switching on ND_WEBVIEW_ENGINE in one place. Persisted extension URLs then need retargeting on read, since a URL stored under one scheme is unloadable under the other.

On Linux, CEF’s windowed embedding still requires X11: native Wayland embedding is unshipped upstream (CEF issue #2804), so a Wayland session runs the chromium engine through XWayland.

Engine resolution

On macOS the system widget is a WKWebView subclass (NDWebView). WebKit is a system framework, always present, nothing to detect.

With "chromium" resolved, both platforms load CEF at runtime instead: from the packaged app bundle (Contents/Frameworks on macOS, lib/cef on Linux), or in dev from the dist cache under ~/.cache/nativedesktop/cef/<version>-<platform>. A successful load logs ND_WEBVIEW_ENGINE chromium with the resolved path; a failed one warns and falls back to the system engine.

On GTK, WebKitGTK is resolved at runtime rather than link time. The surface dlopens libwebkitgtk-6.0.so.4 (falling back to libwebkitgtk-6.0.so / .dylib) and looks up the handful of webkit_web_view_* symbols it needs. When the library is present you get a real WebKitWebView and the log line ND_WEBVIEW_ENGINE webkitgtk.

Linking it at build time is not an option: WebKitGTK is a ~1 GB closure with frequent soname churn, and Homebrew’s GTK stack ships no webkitgtk at all. Resolving through std.DynLib keeps the build independent of it. When webkitgtk is absent the widget shows a placeholder label reading “WebView unavailable (webkitgtk not installed)” and logs ND_WARN WebView unavailable, so an app that uses <webview> still builds and runs everywhere.

Every symbol beyond the base navigation set is looked up on its own, so a WebKitGTK too old for one feature degrades only that feature, with one ND_WARN line naming the missing symbol. Cookies additionally dlopen libsoup-3.0 for SoupCookie, under the same rule.

Engine differences worth knowing

• findResult carries matchCount on GTK (WebKit’s counted-matches pass); WKFindResult reports only match/no-match, so treat the count as optional.
• faviconChanged carries a dataUrl on GTK, where WebKit keeps a favicon database. WKWebView has no favicon API, so macOS reports { pageUrl, iconUrl } and the app fetches the bytes itself.
• contextMenu carries the selected text as selection on macOS. WebKitGTK’s hit test reports only that a selection exists, so GTK sends hasSelection and no selection.
• Context-menu hit tests are the engine’s own on GTK (WebKitHitTestResult). WKWebView hands willOpenMenu no hit test, so macOS reads the click through the page-side agent below; if that report is missing, contexts fall back to what WebKit’s own menu item identifiers imply and the link URL to the last hovered link, with no image URL or selected text on that path.
• linkHover, contextMenu and the audio state are native signals on GTK. WKWebView exposes none of them, so on macOS the framework installs its own user script in a private world (nd-internal, handler __ndInternal) and observes them in the page. That world is reserved: do not use those names for your own scripts or handlers.
• TLS failures are never silently accepted. A certificate error fails the load and reports securityChanged with an error; there is no “proceed anyway” switch.
